The software is called Sparky(ASU’s mascot) Bias Daemon or sparkybiasd
The code should be easy for others to modify and use.
The software shall run as a “Hands Off” daemon on the PI at startup; managed by systemd.
- An assumption was made that redis was being used to handle the readout system. Therefore, it would be reasonable to use that for bias control.
  - Implemented redis based control. User can set what the system subscribes to in the config file.
- Using a raw socket is probably another option…
The software shall generate a log file when running as a system service.
The software should be easy for the end user to update.
- We will generate a python package so it can be installed and updated with pip.
A tool called poetry is used for package dependency management and package generation.

Design

Structure

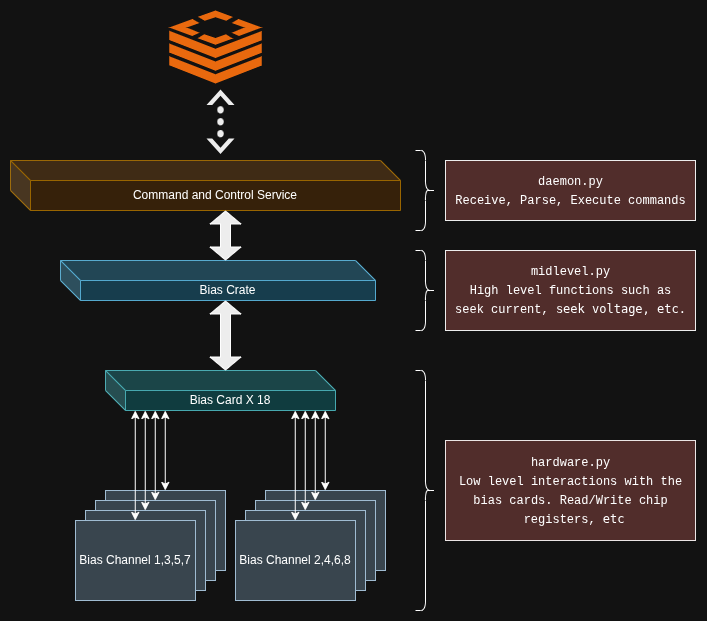

The software is essentially a python library with a main() function. The library can be imported and custom code can be written on top if the end user wishes to do so. Otherwise, a systemd service defined in /etc/systemd/system/sparkybiasd.service is used run a script /etc/run-sparkybiasd. This which in turn, spawns a python interpreter that runs the aforementioned main() function. The interpreter uses a python virtual environment located at /home/asu/.venv/bin/. The top most layer of the library is daemon.py. This has a few tasks. It sets up the redis connection and grabs messages from redis pubsub. It then validates the overall structure of the command and if possible, executes the provided command. It then encapsulates the results of the command in a reply message.

midlevel.py implements the high level seek functions as well as crate wide output enables and disables. This unit handles all of the connected cards in the system. This functionality is housed under the class BiasCrate

hardware.py implements the low level operations of a bias card. This handles communication, setting registers, and keeping track of certain states. The functionality here is housed under the class BiasCard BiasCrate inits a number of these BiasCard objects.

Commanding

Commands are communicated to the bias supply as json objects converted to strings. Those strings are passed around via Redis. Although redis is being used as a message carrier in this case, it can easily be modified and replaced with a simple raw socket or a message broker like RabbitMQ. You would more or less replace the: connection, get message, and send message portion of daemon.main(). main() is the only place in the code where a message is transmitted or received. Below are the available commands and an example of their expected format.

Command - Seek Voltage.

Seeks a voltage for a given card, channel. An acceptable range is between 0 and 4.5. You should expect to see vbus at or around the desired setting. It’s important to note that this function requires that the output be enabled. Otherwise, you will read zero when you aren’t expecting to.

{
    "command": "seekVoltage",
    "args": {
        "card": 1,
        "channel": 1,
        "voltage": 2.33
    }
}

Command - Seek Current.

Seeks a current for a given card, channel. An acceptable range is between 0 and TBD. You should see that current is at or around the desired setting.

It’s important to note that this function requires that the output be enabled. Otherwise, you will read zero when you aren’t expecting to.

{
    "command": "seekCurrent",
    "args": {
        "card": 1,
        "channel": 1,
        "current": 0.2
    }
}

Command - Get Status

Get the status of a specified card

{
    "command": "getStatus",
    "args": {
        "card": 1,
        "channel": 1,
    }
}

Command - Enable Output

Enable a card’s output

{
    "command": "enableOutput",
    "args": {
        "card": 1,
        "channel": 1,
    }
}

Command - Disable Output

Disables a card’s output

{
    "command": "disableOutput",
    "args": {
        "card": 1,
        "channel": 1,
    }
}

Command - Enable Testload

Enable a card’s test load. Every channel of every BiasCard has a self test, 51 ohm, dummy load that can be enabled to verify that the card/channel is operating correctly. It’s important to note that this function requires that the output be enabled. Otherwise, you will read zero when you aren’t expecting to.

{
    "command": "enableTestload",
    "args": {
        "card": 1,
        "channel": 1,
    }
}

Command - Disable Test Load

Disables a card’s test load

{
    "command": "disableTestload",
    "args": {
        "card": 1,
        "channel": 1,
    }
}

Command - Get Available Cards

Enumerates the BiasCards in the system that can be commanded. If a card is found, it’s added to a list of commandable cards.

{
    "command": "getAvailableCards",
    "args": {}
}

This one has a bit of a special reply which should look like the following:

{
    "status": "success",
    "cards": [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
}

Command - Load Config

Loads the saved state of the BiasCrate. This would be the state of the regulators as well as which outputs are enabled. If enableOutputs is set to false, then the state of the outputs is ignored and they are disabled. If it’s set to true, the the outputs are set to what was configured. The config file loaded is /home/asu/daemon/config.yaml

{
    "command": "loadConfig",
    "args": {
        "enableOutputs": true,
        "createNewConfig": false,
    }
}

Command - Save Config

Saves the state of the BiasCrate. This would be the state of the regulators as well as which outputs are enabled. The config file loaded is /home/asu/daemon/config.yaml

{
    "command": "loadConfig",
    "args": {}
}

Command - Disable All Outputs

{
    "command": "disableAllOutputs",
    "args": {}
}

Reply On Command Success

{
    "status": "success",
    "card": 1,
    "channel": 1,
    "vbus": 2.334,
    "vshunt": 0.024,
    "current": 0.2,
    "outputEnabled": true,
    "wiper": 768
}

Reply on Error

Currently, the error codes are TBD and shouldn’t be used. They will be filled in with a later update.

{
    "status": "error",
    "code": -1,
    "msg": "Received an invalid command message"
}

Configuration

Configuration can be found in $HOME/daemon/config.yml

Logs

The application creates logs in $HOME/daemon/logs/applog.txt. Logs can reach a maximum of 4 Megabytes before being rolled over. The previous logs would be renamed to applog.txt.1, applog.txt.2, etc until 5. This is to keep the logs from being burdensome on the system.

For details on implementation, see Python’s RotatingFileHandler

Testing

First, a redis server is spun up. This project is then transferred to the PI with scp. Following this, the virtual environment in $HOME/.venv/bin/ is activated and we execute pytest on the tests directory. A local redis server is spun up. This tooling is uploaded to the raspberry pi. pytest is then ran on the tests dicrectory.
